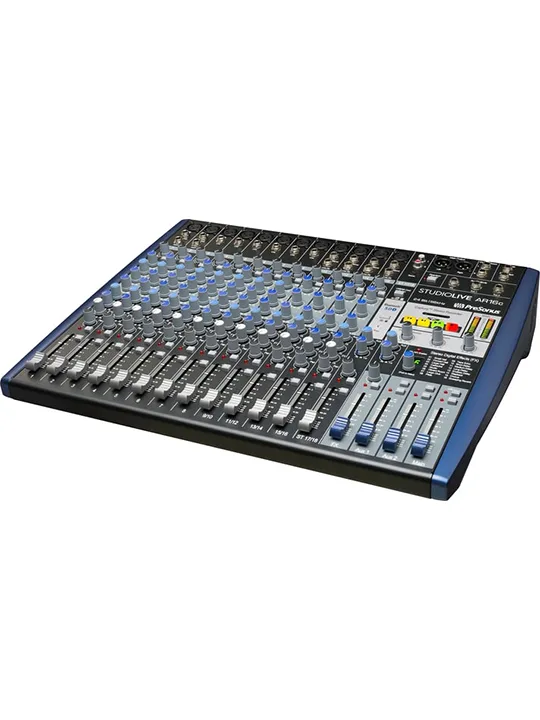

PreSonus StudioLive AR16c Analog Mixer

PreSonus StudioLive AR16c Analog Mixer

฿ 28,800

PreSonus StudioLive AR16c Analog Mixer

  • StudioLive® AR16c สร้างมาเพื่อการบันทึก นำเสนอส่วนหน้าแบบอะนาล็อกดั้งเดิมพร้อมพรีแอมป์ไมโครโฟน XMAX ที่ให้กำลังสูง 12 ตัว และอินเทอร์เฟซเสียง USB 2.0 ที่รองรับ USB-C™ 18x4, 24 บิต, 96 kHz การออกแบบไฮบริดของ StudioLive AR16c ทำให้การมิกซ์และบันทึกเป็นเรื่องง่าย เพิ่ม EQ อนาล็อกทางดนตรี 3 แบนด์, บูสต์ไมโครโฟน/สายสำหรับแหล่งเสียงระดับต่ำ รวมถึงซินธ์วินเทจ, เอฟเฟกต์ดิจิทัลใหม่ทั้งหมดพร้อมรีเวิร์บที่เข้มข้นและดีเลย์อันนุ่มนวล, การเชื่อมต่อ Bluetooth® และเครื่องบันทึก SD สเตอริโอ... และคุณมี ขุมพลังในการมิกซ์และบันทึกเสียงที่ตอบสนองความต้องการของนักดนตรีสมัยใหม่

PreSonus StudioLive AR16c Analog Mixer

  • Don't let the classic analog mixer design fool you - the StudioLive® AR16c was built to record. Featuring a pristine analog front end with 12 high-gain XMAX mic preamps and an 18x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR16c's hybrid design makes it simple to mix and record. Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.

** กด"สั่งซื้อ/สอบถามข้อมูล" เพื่อติดต่อผ่าน Line @

กรุณาแจ้งรุ่นและสี ที่ต้องการครับ

Additional information

Brands

PreSonus

Categories

Mixer

SKU: P277-9206-102 - Need Help? Contact Us Leave Feedback

Categories: , ,

Features

  • 18×4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
  • 2×2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
  • 18-channel analog mixer with:
    • 12 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 16 balanced line level inputs, and 2 insert points
    • Stereo Super Channel (Ch. 17/18) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
    • Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
  • Complete recording solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac® and Windows

The Channel That Does It All

The unique Super Channel makes it easy to connect up to four consumer devices at once. You get RCA inputs, a ⅛-inch stereo input, and a stereo Bluetooth input all at once. Toggle between playback from your computer and the onboard SD recorder to add bumpers and sound effects to your podcast in real time or practice along with your favorite recordings.

The channel that does it all

Onboard Effects.

The StudioLive AR16c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the main mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart’s content.

Onboard effects.

One-Click Recording

The StudioLive AR16c is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

One-click recording

World-Class Recording Software Included

Take your Capture recordings to the next level with Studio One Artist. Open your multitrack sessions natively in Studio One to start mixing! Studio One’s intuitive drag-and-drop workflow makes recording, mixing, and producing fast and fun.

World-class recording software included

Microphone Preamp

  • Total Harmonic Distortion
    <0.01% (Minimum Gain, A-Weighted)
  • Signal To Noise Ratio
    94 dB (+4 dBu)
  • Common Mode Rejection Ratio
    65 dB (1 kHz, +55 dB Gain)
  • Gain Control Range
    43 dB (+12 to +55 dB)
  • Microphone Preamp Maximum Input Level
    +9 dBu ±1.0 dB (Unity Gain)
  • Phantom Power
    +48 VDC
  • Frequency Response
    20 Hz to 20 kHz, +0.5/-1.5 dB
  • Microphone Preamp Input Impedance
    1 kΩ
  • Equivalent Input Noise
    < 128 dBu (+55 dB gain, 150Ω Input, 20 Hz-22 kHz)

Instrument Inputs

  • Instrument Inputs Impedance
    > 1 MΩ
  • Instrument Inputs Maximum Level
    +9 dBu ±1.0 dB (Minimum Gain, 1 [email protected]% THD + N)
  • Gain Range
    43 dB, ±1 dB (+12 to +55 dB)
  • Frequency Response
    20 Hz to 20 kHz, +0.5/-1.5 dB
  • Dynamic Range
    > 108 dB (Mid Gain, Unweighted)
  • Total Harmonic Distortion
    <0.01% (1 kHz, -1 dBFS, Unweighted)

Line Inputs

  • Line Inputs Maximum Level
    +26 dBu ±1.0 dB (Minimum Gain, 1 [email protected]% THD + N)
  • Line Inputs Gain Range
    Mono: 40 dB, ±1 dB, Stereo: 0 dB or +10 dB
  • Line Inputs Frequency Response
    20 Hz to 20 kHz, +0.5/-1.5 dB
  • Line Inputs Total Harmonic Distortion
    <0.01% (1 kHz, -1 dBFS, A-Weighted)
  • Line Inputs Impedance
    10 kΩ (Balanced)

Main And Line Outputs

  • Main And Line Outputs Frequency Response
    20 Hz to 20 kHz, +0.5/-1.5 dB
  • Main And Line Outputs Total Harmonic Distortion
    <0.01% (Bandwidth 20 Hz – 20 kHz, -1 dBFS, Unweighted)

Headphone Outputs

  • Headphone Outputs Maximum Output
    150 mW /Channel at 60 Ω
  • Frequency Response
    20 Hz to 20 kHz, +0.5/-1.5 dB
  • Dynamic Range
    >103 dB (A-Weighted)
  • Total Harmonic Distortion
    <0.01% (Bandwidth 20 Hz – 20 kHz, -1 dBFS, Unweighted)

Digital Audio

  • Digital Audio Dynamic Range
    105 dB (A-Weighted, 48 kHz)
  • Digital Audio Bit Depth
    24
  • Supported Sample Rates
    44.1, 48, 88.2, 96 kHz

Electronics

  • Voltage
    100-120V

Miscellaneous

  • Connection Type
    IEC
