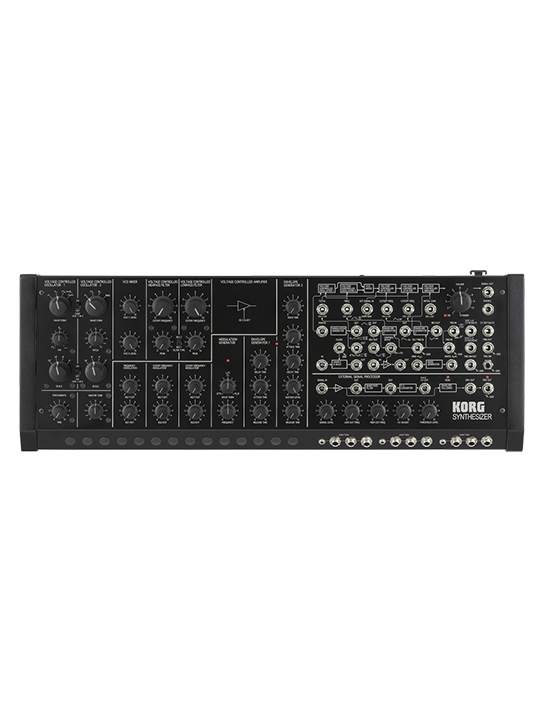

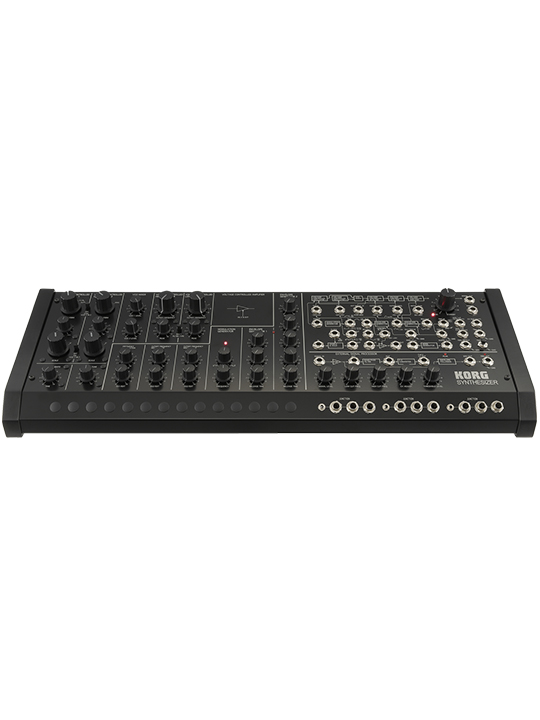

Korg MS-20m Monophonic Synthesizer Kit and SQ-1 Step Sequencer

Korg MS-20m Monophonic Synthesizer Kit and SQ-1 Step Sequencer

Original price was: ฿ 40,000.Current price is: ฿ 36,000.

Korg MS-20m Monophonic Synthesizer Kit and SQ-1 Step Sequencer

  • MS-20 analog synthesizer บบคลาสสิกที่ปรากฏในปี 1978 ได้เกิดใหม่อีกครั้งโดยเป็นการทำซ้ำวงจรดั้งเดิมอย่างสมบูรณ์แบบ โดยที่คุณสามารถประกอบได้ด้วยตัวคุณเอง MS-20 Mini และชุดอุปกรณ์ได้รับการออกแบบโดยวิศวกรผู้พัฒนา MS-20 รุ่นดั้งเดิม ในช่วงเปิดตัว นักออกแบบของ MS-20 ต้องการสร้างผลิตภัณฑ์ที่น่าสนใจอย่างรวดเร็ว ผลลัพธ์ที่ได้นั้นได้รับความนิยมอย่างมาก แต่นักออกแบบรู้สึกว่ามีบางสิ่งที่ยังไม่ได้ทำจริงๆ ปัจจุบัน หลังจากผ่านไป 37 ปี ชุด MS-20M ที่ผู้ใช้สามารถประกอบเองได้ก็เสร็จสมบูรณ์แล้ว ชุด MS-20M มีพื้นฐานมาจาก MS-20 พร้อมการปรับปรุงเพิ่มเติม เป็นโมดูลซินธิไซเซอร์แบบแอนะล็อกที่คุณสามารถเลือกการตั้งค่าและประกอบเองได้ นอกเหนือจากความเป็นไปได้ในการสังเคราะห์ที่ได้รับการปรับปรุงอย่างมากจากการซิงค์ออสซิลเลเตอร์, FM, ฟิลเตอร์สองตัว (ก่อนและหลัง) และ PWM แล้ว ยังมีแจ็ค เช่น CV IN ที่รองรับทั้ง Hz/V และ V/Oct ทำให้เล่นร่วมกับอุปกรณ์อื่นๆ ได้อย่างดี คุณจะสามารถดื่มด่ำไปกับการสังเคราะห์ และด้วยการรวม SQ-1 step sequencer คุณจึงสามารถสร้างและเล่นซีเควนซ์ได้อย่างดี

Korg MS-20m Monophonic Synthesizer Kit and SQ-1 Step Sequencer

The evolution of the MS-20, delivering even more powerful synthesis.
A module that you assemble, with a step sequencer included.

  • The classic MS-20 analog synthesizer that appeared in 1978 has been reborn as a perfect reproduction of the original circuit, first in 2013 as the mini-sized MS-20 mini, and now in 2014 as the MS-20 Kit that you can assemble yourself.
  • The MS-20 Mini and the Kit were designed by the engineers who developed the original MS-20. At its introduction, the designers of the MS-20 wanted to create an interesting product quickly; the result was an enormous hit, but the designers felt there were actually a few things left undone. Now, after 37 years, the user-assembled MS-20M Kit has been completed.
  • The MS-20M Kit is based on the MS-20 with additional improvements; it's an analog synthesizer module where you can choose your preferences and assemble yourself. In addition to greatly enhanced synthesis possibilities provided by oscillator sync, FM, two filters (pre and post), and PWM, there are jacks such as a CV IN that supports both Hz/V and V/Oct, making it play nicely with other equipment. You'll be able to immerse yourself in synthesis, and with the inclusion of the SQ-1 step sequencer you can also create and play sequences.

** กด"สั่งซื้อ/สอบถามข้อมูล" เพื่อติดต่อผ่าน Line @

กรุณาแจ้งรุ่นและสี ที่ต้องการครับ

Additional information




Synthesizer&Keyboard (คีย์บอร์ด)


Synthesizer (ซินธิไซเซอร์)


Ms 20

SKU: 002-01139 - Need Help? Contact Us Leave Feedback

Categories: ,

  • Significantly powered-up synthesis
    – SYNC ON/OFF switch allows oscillator sync
    – FM ON/OFF switch allows frequency modulation
    – FILTER TYPE switch selects two filter types
    – PWM IN jack allows pulse width modulation
    – EG2 NORMAL OUT expands your sonic possibilities
    – TRIG SW button is a convenient way to audition the sound
  • Plentiful connectors to control the sound from various devices
    – Supports all CV/GATE specifications: Hz/V and V/Oct, S-Trig and V-Trig
    – Three JUNCTION jacks
    – MIDI IN connector and USB MIDI connector
  • User-assembled kit with luxurious side panels
  • SQ-1 step sequencer included

Dramatically powered-up synthesis

Carrying on the distinctive synthesis of the MS-20, the MS-20M features additional improvements in both looks and functionality. Extending to detailed aspects of the design, the sound-creating possibilities have been dramatically boosted, making this sound module even more attractive and raising it to an even higher state of completion.

SYNC ON/OFF switch allows oscillator sync

Oscillator sync forcibly synchronizes the phase of VCO1 to the phase of VCO2, producing a powerful sound with complex overtones.

FM ON/OFF switch allows frequency modulation

The VCO1 waveform can be used to frequency-modulate the VCO2 waveform (FM or cross modulation), creating vibrato effects or extreme metallic sounds.

FILTER TYPE switch lets you select two types of filter

The original MS-20 used two different VCF circuits depending on the date of production, and now you can choose either of these with a single switch. The earlier model (REV.1) has an aggressive character with distinctive distortion and self-oscillation, while the later model (REV.2) has minimal noise and a sweet, mellow sound.

PWM IN jack allows pulse width modulation

The PWM provided on the MS-10 of the past is now possible on the MS-20. By cyclically modulating the pulse width of the VCO1 square wave, you can obtain a distinctively fat sound.

EG2 NORMAL OUT jack expands your sound-creating potential

In addition to the previous EG2 REV OUT, we’ve provided a normal EG2 OUT that varies in the range of 0V–+5V.

TRIG SW button lets you conveniently audition the sound

Even on this keyboardless unit, the trigger switch lets you smoothly audition the sound while you edit the parameters.

A rich array of jacks to control a variety of devices

Numerous jacks have been added to the MS-20M, letting you connect it with any type of device.

All CV/GATE specifications are supported: Hz/V and V/Oct, S-Trig and V-Trig

From the time when it was originally produced, the CV standard used by the MS-20 was not the commonly used V/Oct standard, but rather the Hz/V standard that provided superior pitch stability. However, like the MS-50 of that time, the MS-20M Kit provides CV IN jacks for both the Hz/V standard and the V/Oct standard.

For the TRIG IN jack that receives gate signals, jacks are provided not only for the S-Trig standard as on the original MS-20, but also for the widely used V-Trig standard. The MS-20M Kit supports any sequencer or controller that’s equipped with CV/GATE output.

Three JUNCTION jacks

Three sets of the junction jacks once provided by the MS-50 are also provided. Output signals from the SQ-1 step sequencer or similar device can be converted from a mini-phone plug to a 1/4″ phone plug, or those signals can be distributed to multiple destinations for a variety of possibilities.

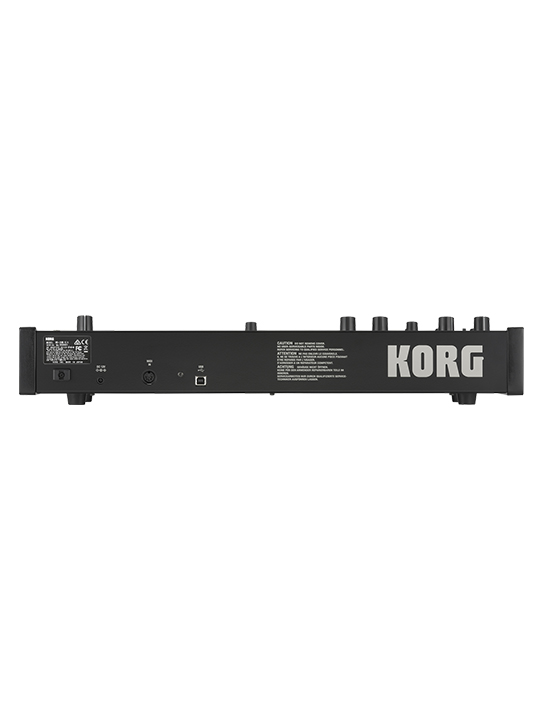

MIDI IN connector and USB connector

There’s a MIDI IN connector that can receive note messages, and a USB-MIDI connector that can transmit and receive note messages. You can perform using a taktile or other MIDI keyboard, or perform sequences that you’ve recorded on your DAW.

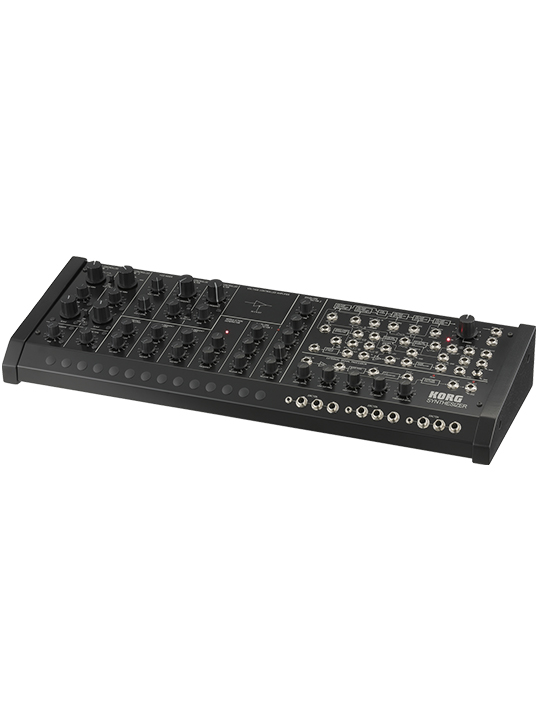

User-assembled kit with luxurious wooden side panels

The full-sized body supports 1/4″ plugs and projects an aura of solidity. The side panels are luxurious wood, giving this unit some serious presence on your desk.

The MS-20M is a user-assembled kit. There is no need for any tricky soldering or knowledge of electronic circuits. Just by installing screws and fitting parts together, you’ll get your very own analog sound.

SQ-1 step sequencer is included

The 2 x 8 step SQ-1 step sequencer is included. From the day you assemble the unit, you’ll be able to immerse yourself in a limitless world of synthesis and sequencing.
