Original price was: ฿ 9,000.฿ 8,100Current price is: ฿ 8,100.
Korg Micro Audio 722
- Korg microAUDIO 722 คือ Audio Interface รุ่นใหม่ที่ “ไม่ธรรมดา” เพราะรวมความสามารถของอินเทอร์เฟซคุณภาพสูงเข้ากับ Analog Filter ทำให้คุณสามารถบันทึกเสียงและออกแบบซาวด์ได้ในเครื่องเดียว เหมาะทั้งงานโปรดักชันและครีเอเตอร์ยุคใหม่
- ออดิโออินเทอร์เฟซ 2-in / 2-out คุณภาพสูง (24-bit / 192kHz) พร้อม Analog Filter แท้จาก miniKORG 700S ในตัว
** กด"สั่งซื้อ/สอบถามข้อมูล" เพื่อติดต่อผ่าน Line @
กรุณาแจ้งรุ่นและสี ที่ต้องการครับ
Additional information
| Brands | Korg |
|---|---|
| Categories | Audio Interface |
- Audio format
- Sampling rate: 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz
Bit rate: 24-bit
- Mic input
- Dynamic range: 109.5 dB (A characteristic)
THD+N: less than 0.015% (minimum gain, -1 dBFS input)
Maximum input level: -2 dBu (minimum gain)
Gain range: 56 dB Impedance: 1.5 kΩ
- Line input
- Dynamic range: 109.5 dB (A characteristic)
THD+N: less than 0.004% (minimum gain, -1 dBFS input, 22 Hz/22 kHz bandpass filter)
Maximum input level: 13 dBu/18 dBu (SE/ DIF) (minimum gain) Gain range: 56 dB
Impedance: 1 MΩ/2 MΩ (SE/DIF)
- Line output
- Dynamic range: 109.5 dB (A characteristic)
THD+N: less than 0.0015% (minimum gain, -1 dBFS input)
Maximum output level: 10 dBu/16 dBu (minimum gain)
Impedance: 330 Ω/660 Ω (SE/DIF)
- Headphone output
- Dynamic range: 107 dB (A characteristic)
THD+N: less than 0.0015% (minimum gain, -1 dBFS input, 22 Hz/22 kHz bandpass filter)
Maximum output level: 10 dBu (minimum gain)
Impedance: 20 Ω

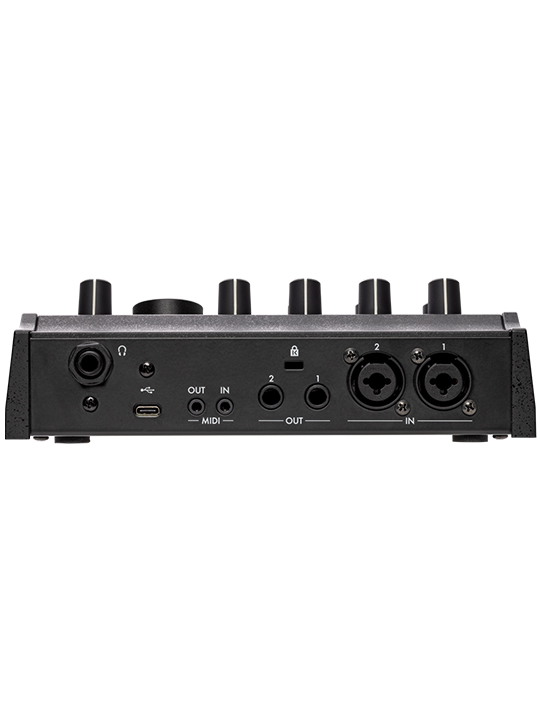

- Jacks and ports
- microAUDIO 22: IN 1, 2 jacks (XLR/6.3 mm TRS monaural phone jack), OUT 1, 2 jacks (6.3 mm TRS monaural phone jacks), (USB) port (Type-C), (headphones) jack (6.3 mm stereo phone jack)
microAUDIO 722: IN 1, 2 jacks (XLR/6.3 mm TRS monaural phone jack), OUT 1, 2 jacks (6.3 mm TRS monaural phone jacks), MIDI IN jack, MIDI OUT jack (3.5 mm TRS phone jack), (USB) port (Type-C), (headphones) jack (6.3 mm stereo phone jack)
- Power supply
- USB bus power
- Current consumption
- 800 mA or less
- Dimensions
- microAUDIO 22: 150 mm (W) x 128 mm (D) x 68 mm (H)/5.91˝ x 5.04˝ x 2.68˝
microAUDIO 722: 207 mm (W) x 128 mm (D) x 68 mm (H)/8.15˝ x 5.04˝ x 2.68˝
- Weight
- microAUDIO 22: 407 g/0.90 lb
microAUDIO 722: 553 g/1.22 lb
- Included items
- microAUDIO 22: USB cable, Quick Start Guide
microAUDIO 722: USB cable, MIDI TRS-DIN adapter cables, Quick Start Guide
| * | All product names and company names are the trademarks or registered trademarks of their respective owners. |
|---|---|
| * | Specifications and appearance may be changed without notice for improvement purposes. |
Compact Design Meets Studio Clarity
The microAUDIO series brings KORG’s studio-grade engineering straight to your desktop, with two Audio Interface models designed for different types of creators.
The streamlined microAUDIO 22 delivers pure, essential performance with a clean and intuitive layout. It is ideal for beginners and hobbyists who want high-quality audio without unnecessary complexity.
The hybrid microAUDIO 722 takes creativity further by integrating KORG’s legendary analogue filter. It creates a rich, expressive tone that blurs the line between interface and instrument, giving artists a way to shape sound that digital processing alone cannot replicate.
Compact Form. Premium Sound
microAUDIO offers a pristine, open sound with a strong sense of depth and generous headroom in a compact, desktop-ready design.
Studio-grade preamps are tuned for musical gain with minimal noise, prioritizing clarity while avoiding excess circuitry. Both models support 24-bit/192kHz audio and include balanced inputs and outputs for high-quality recording and playback.
From detailed vocal work to layering synthesizers or performing live, every nuance is faithfully captured.

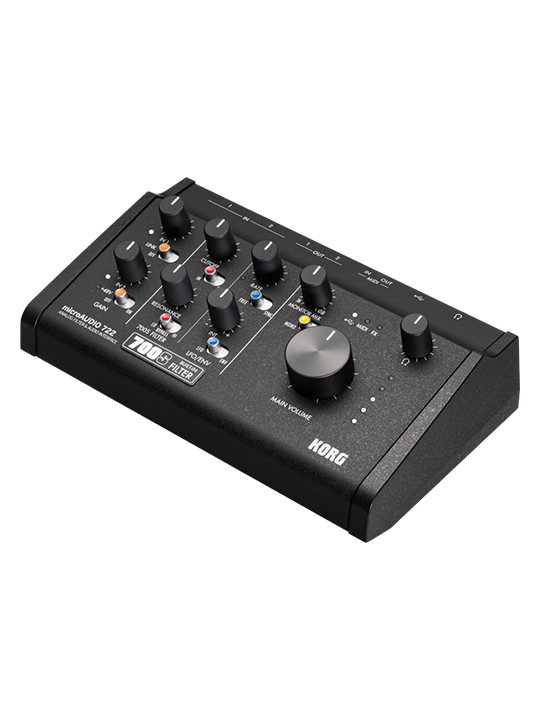

Intuitive, Hands-On Control for Creative Flow
Each channel of the microAUDIO series features versatile Mic, Line, and Hi-Z inputs with 48V phantom power, plus assignable Noise Gate and either a Compressor or Limiter for smooth, musical gain with minimal noise. These processors can be applied not only to input signals, but also to any audio played back from a connected computer. (*)
Front-panel knobs provide direct access to essential functions, and zero-latency direct monitoring ensures immediate feedback during recording or live performance. The headphone output can be assigned independently of the main outputs, allowing you to route a click track exclusively to the headphones or monitor cue signals when connected to DJ applications. (*)
The Stereo Link function allows both channels to be controlled simultaneously with a single knob, making it ideal for stereo synthesizers and other paired sources. This workflow keeps the technical side simple so you can stay focused on creating.
(*) These features will be added in version 1.01, scheduled for release in February 2026.
Ready for Streaming and Mobile Creation
Built-in loopback mode sends computer audio directly into your livestream or DAW without complicated routing. This is ideal for streaming, sampling, or capturing content on the fly.
ith USB-C connectivity, microAUDIO works seamlessly with smartphones and tablets, making it easy to create or stream from anywhere.
Whether recording at home, performing on stage, or streaming online, the microAUDIO series adapts to your workflow and delivers consistent, professional sound.
The filter includes Low-Pass, High-Pass, and Bypass modes and can process inputs as well as any audio played back from a connected computer.
With MIDI In/Out connectivity, you can automate the filter, synchronize with external hardware, and explore creative hybrid workflows that blend digital precision with the miniKORG 700S’s distinctive analog behavior.
Filter Ark
The Heart of Creative Sound Design
Bundled exclusively with microAUDIO, Filter Ark is KORG’s next-generation filter plugin for DAW-based production.
It faithfully reproduces legendary analog filters from the MS-20, Polysix, miniKORG 700S, and ARP Odyssey, while introducing new models such as physically modeled resonators and vowel-based filters.
With up to four filters routable in series, parallel, or feedback configurations, plus morphable LFOs, sequencers, and macros for advanced modulation, Filter Ark turns filtering into a creative instrument.
Scale quantization and performance-ready presets ensure every movement is musical, unlocking expressive sound design far beyond traditional filtering.
Software Bundle for Instant Creation
In addition to Filter Ark, microAUDIO includes a complete software suite with instruments and production tools such as Ableton Live Lite, Native Instruments Komplete Select, and iZotope Ozone Elements. This covers everything from composition and recording to mixing and mastering.
You can begin creating immediately.
